Industrial concrete pump with truck 63m concrete pumping machines

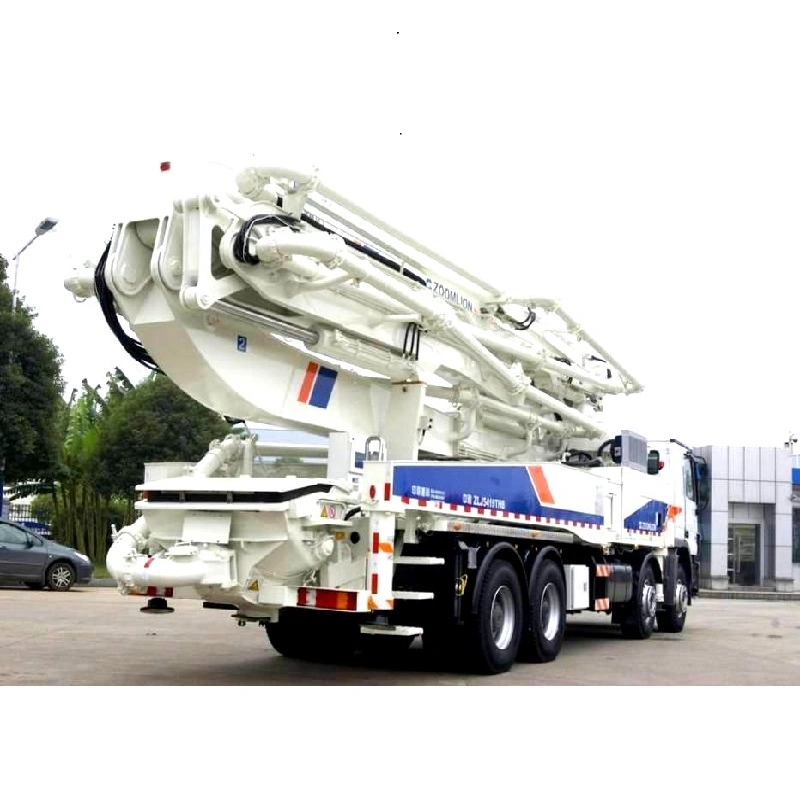

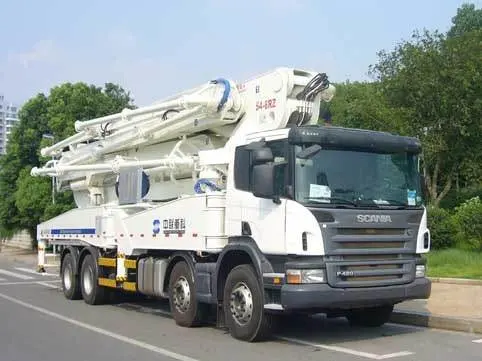

Compact in design, 40m pump mounted on 3-axle truck.
• Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably,
reliably and safely.
• Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
• Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
Products Parameter:
| Model | Unit | 38X-5RZ/160 | |
|---|---|---|---|
| Pump Unit | Maximum theorical output | m3/h | 100/60 |
| Maximum pressure on concrete | bar | 61/103 | |
| Conc. cylinders (diam. x stroke) | mm | 230x1650 | |
| Concrete hopper capacity | L | 550 | |
| Hydraulic circuit | Open | ||
| Boom Section | Maximum vertical reach | mm | 37.1 |
| Maximum horizontal distance | m | 32.8 | |
| Minimum unfolding height | m | 8 | |
| Section numbers | m | 5 | |
| Rotating angle | ±270° | ||
| End hose lenght | m | 3 |
